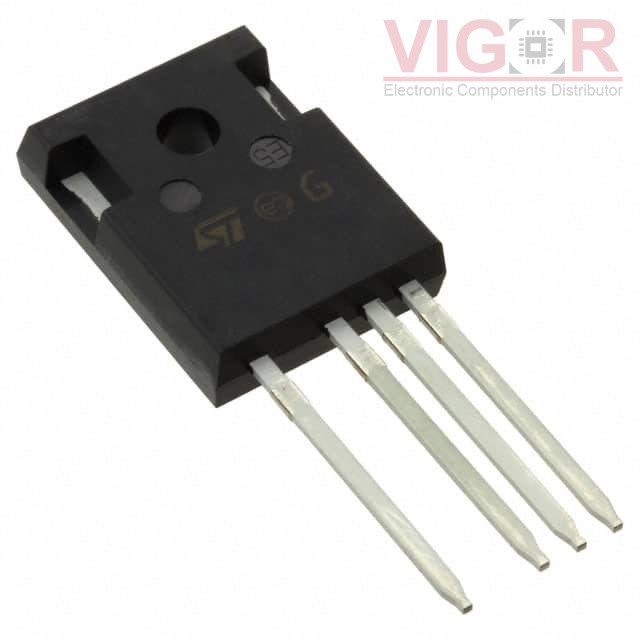

SCTWA90N65G2V-4

Part No :: SCTWA90N65G2V-4

Manufacturer: STMicroelectronics

Description: TRANS SJT N-CH 650V 119A HIP247

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SCTWA90N65G2V-4 PDF

Availability: 63 pieces

Current price of SCTWA90N65G2V-4 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCTWA90N65G2V-4 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	119A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	24mOhm @ 50A, 18V
Vgs(th) (Max) @ Id:	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	157 nC @ 18 V
Vgs (Max):	+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	3380 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	565W (Tc)
Operating Temperature:	-55°C ~ 200°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	HiP247™ Long Leads
Package / Case:	TO-247-3
