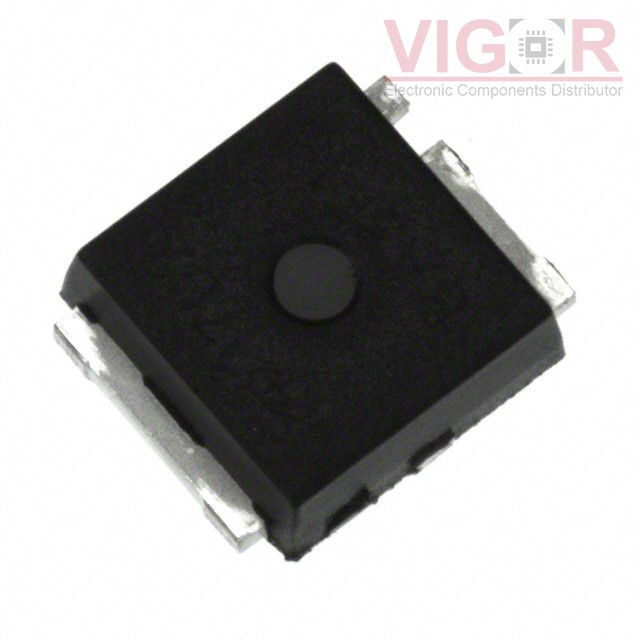

AOL1240

Part No :: AOL1240

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N-CH 40V 19A/69A ULTRASO8

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AOL1240 PDF

Availability: 0 pieces

Current price of AOL1240 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AOL1240 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	19A (Ta), 69A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	3mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	50.5 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3800 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta), 125W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	UltraSO-8™
Package / Case:	3-PowerSMD, Flat Leads
