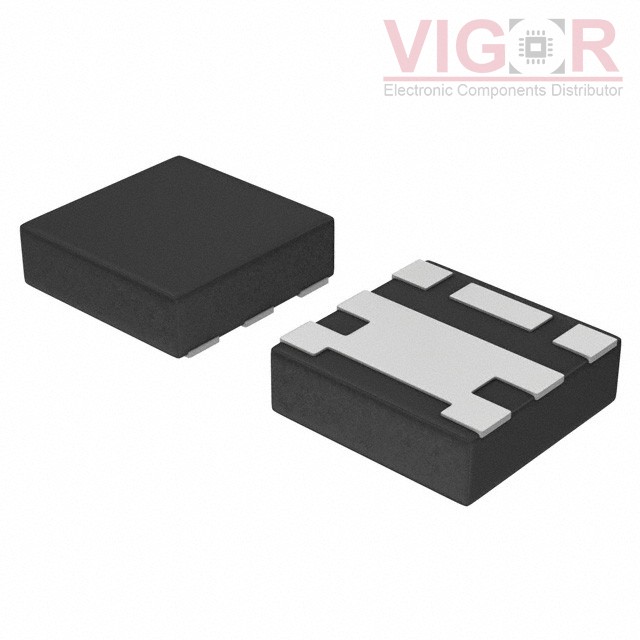

NTLUS3A39PZCTAG

Part No :: NTLUS3A39PZCTAG

Manufacturer: VIGOR

Description: MOSFET P-CH 20V 3.4A 6UDFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NTLUS3A39PZCTAG PDF

Availability: 69000 pieces

Current price of NTLUS3A39PZCTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTLUS3A39PZCTAG Specifications

Type	Description
Series:	µCool™
Package:	Bulk
Part Status:	Obsolete
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	39mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	10.4 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	920 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	600mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-UDFN (1.6x1.6)
Package / Case:	6-PowerUFDFN
