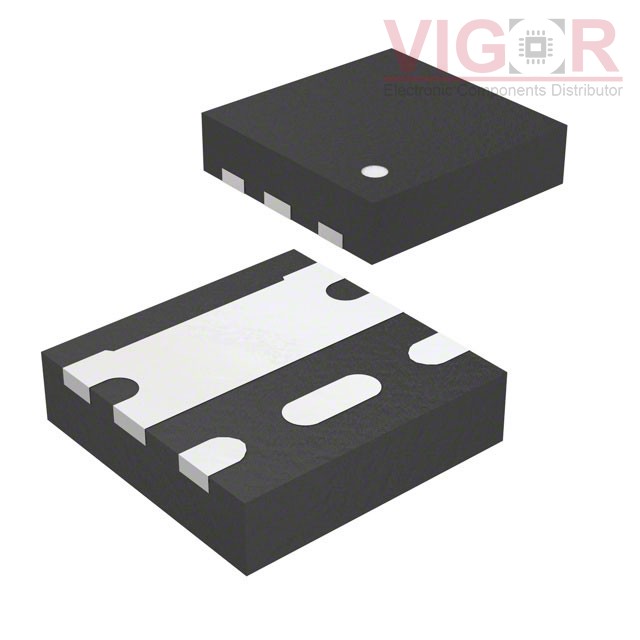

FDMA008P20LZ

Part No :: FDMA008P20LZ

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET P-CHANNEL 20V 12A 6PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMA008P20LZ PDF

Availability: 49173000 pieces

Current price of FDMA008P20LZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMA008P20LZ Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	12A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	13mOhm @ 2.5A, 4.5V
Vgs(th) (Max) @ Id:	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	39 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	4383 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2.4W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-PQFN (2x2)
Package / Case:	6-PowerWDFN
