FDFMJ2P023Z

FDFMJ2P023Z

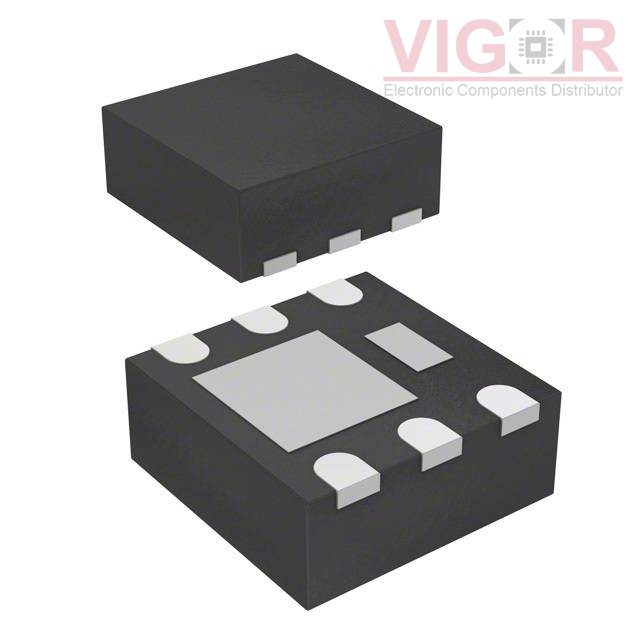

Image is for reference,
please contact us to get the real picture

Part No :

FDFMJ2P023Z

Manufacturer
VIGOR
Description
MOSFET P-CH 20V 2.9A SC75 MICROF
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Oct 09 - Oct 13 2025
DataSheet
FDFMJ2P023Z PDF
Availability
29990 pieces
Unit Price
$0.30000

Current price of FDFMJ2P023Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FDFMJ2P023Z Specifications
Type Description
Series:PowerTrench®
Package:Bulk
Part Status:Obsolete
FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:2.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.5V, 4.5V
Rds On (Max) @ Id, Vgs:112mOhm @ 2.9A, 4.5V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:6.5 nC @ 4.5 V
Vgs (Max):±8V
Input Capacitance (Ciss) (Max) @ Vds:400 pF @ 10 V
FET Feature:Schottky Diode (Isolated)
Power Dissipation (Max):1.4W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SC-75, MicroFET
Package / Case:6-WFDFN Exposed Pad
