TSM2301BCX RFG

Part No :: TSM2301BCX RFG

Manufacturer: TSC (Taiwan Semiconductor)

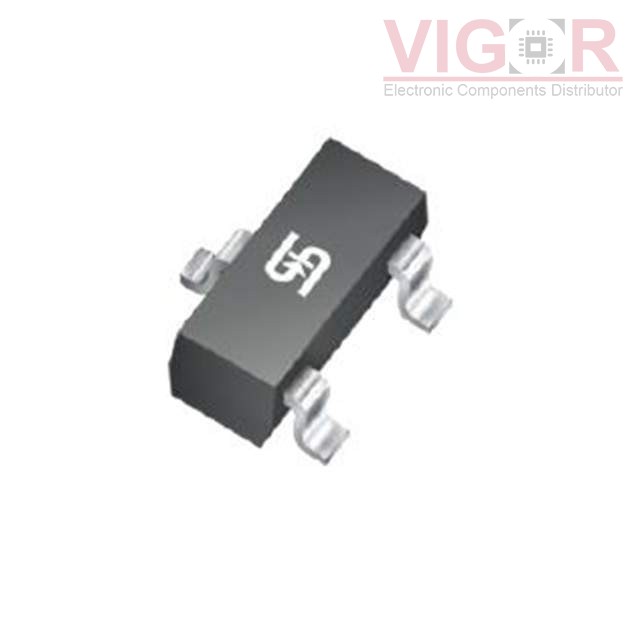

Description: MOSFET P-CHANNEL 20V 2.8A SOT23

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM2301BCX RFG PDF

Availability: 6 pieces

Current price of TSM2301BCX RFG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM2301BCX RFG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	2.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	100mOhm @ 2.8A, 4.5V
Vgs(th) (Max) @ Id:	950mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	4.5 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	415 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	900mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23
Package / Case:	TO-236-3, SC-59, SOT-23-3
