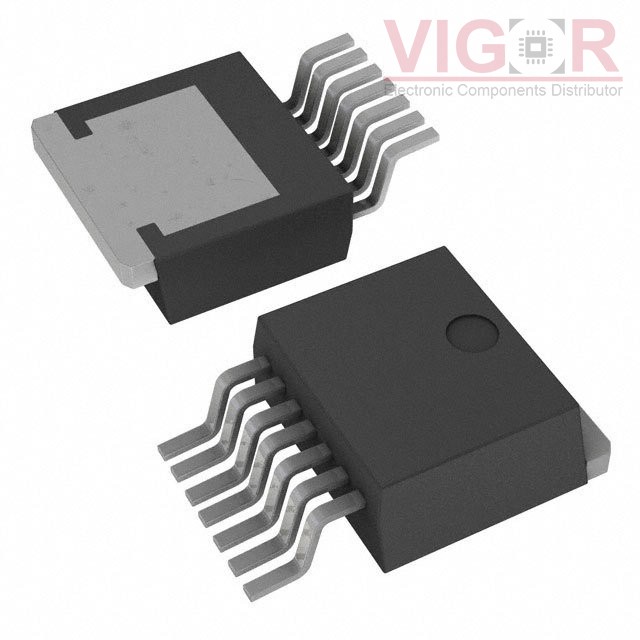

SCTH90N65G2V-7

Part No :: SCTH90N65G2V-7

Manufacturer: STMicroelectronics

Description: SICFET N-CH 650V 90A H2PAK-7

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SCTH90N65G2V-7 PDF

Availability: 873 pieces

Current price of SCTH90N65G2V-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SCTH90N65G2V-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	90A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	18V
Rds On (Max) @ Id, Vgs:	26mOhm @ 50A, 18V
Vgs(th) (Max) @ Id:	5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	157 nC @ 18 V
Vgs (Max):	+22V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	3300 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	330W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	H2PAK-7
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA

Please confirm the specifications of the products when ordering.
