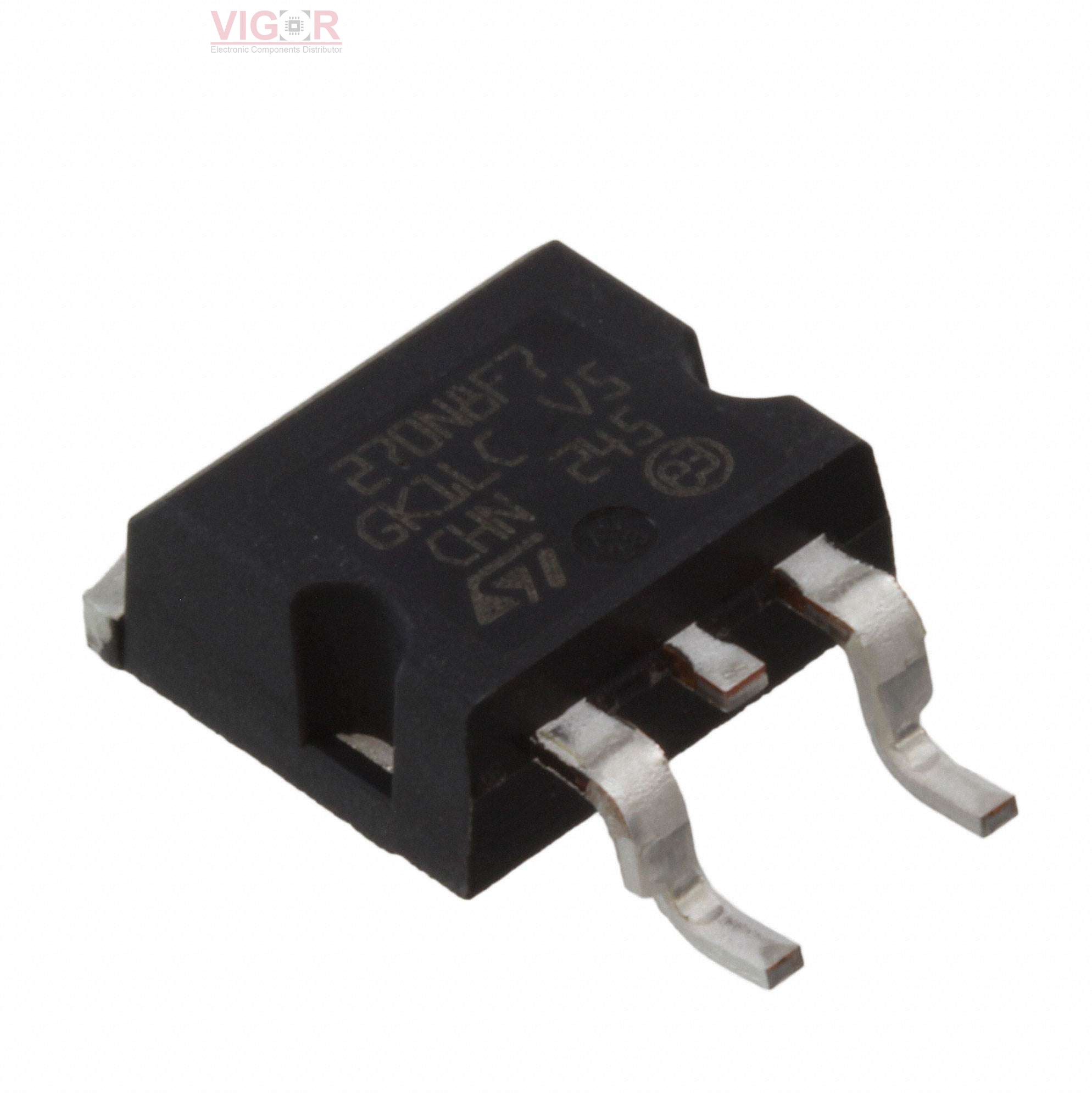

STH270N8F7-2

Part No :: STH270N8F7-2

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 80V 180A H2PAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STH270N8F7-2 PDF

Availability: 521 pieces

Current price of STH270N8F7-2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STH270N8F7-2 Specifications

Type	Description
Series:	DeepGATE™, STripFET™ VII
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	2.1mOhm @ 90A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	193 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	13600 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	315W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	H²PAK
Package / Case:	TO-263-3, D²Pak (2 Leads + Tab) Variant

Please confirm the specifications of the products when ordering.
