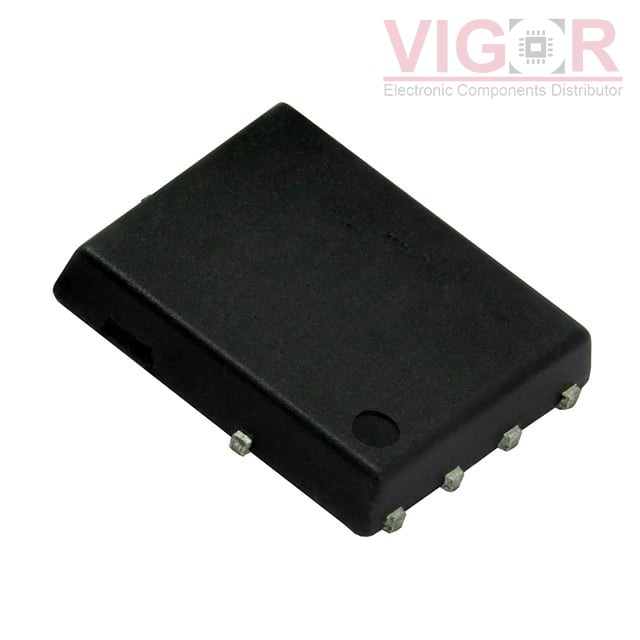

SIR681DP-T1-RE3

Part No :: SIR681DP-T1-RE3

Manufacturer: Vishay / Siliconix

Description: MOSFET P-CH 80V 17.6A/71.9A PPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIR681DP-T1-RE3 PDF

Availability: 0 pieces

Current price of SIR681DP-T1-RE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIR681DP-T1-RE3 Specifications

Type	Description
Series:	TrenchFET® Gen IV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	17.6A (Ta), 71.9A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	11.2mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	105 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4850 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	6.25W (Ta), 104W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® SO-8
Package / Case:	PowerPAK® SO-8
