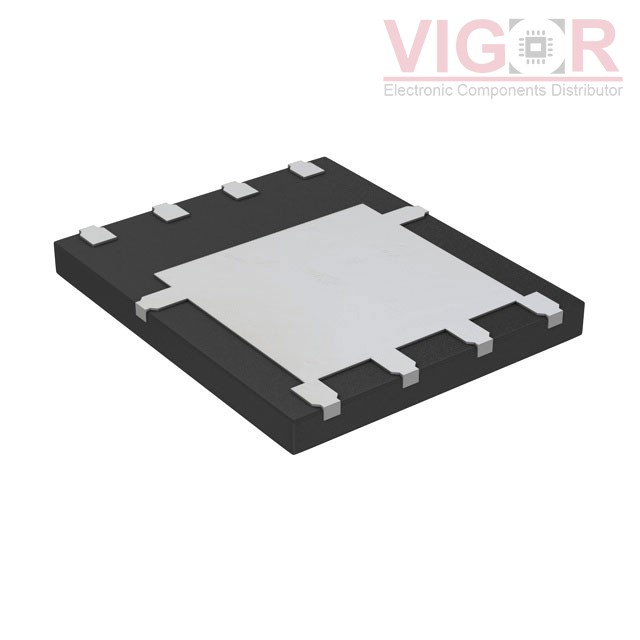

SIDR638DP-T1-GE3

Part No :: SIDR638DP-T1-GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 40V 100A PPAK SO-8DC

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIDR638DP-T1-GE3 PDF

Availability: 2841 pieces

Current price of SIDR638DP-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIDR638DP-T1-GE3 Specifications

Type	Description
Series:	TrenchFET® Gen IV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	0.88mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	204 nC @ 10 V
Vgs (Max):	+20V, -16V
Input Capacitance (Ciss) (Max) @ Vds:	10500 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	125W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® SO-8DC
Package / Case:	PowerPAK® SO-8
