FDPF8N50NZF

Part No :: FDPF8N50NZF

Manufacturer: VIGOR

Description: MOSFET N-CH 500V 7A TO220F

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDPF8N50NZF PDF

Availability: 1042 pieces

Current price of FDPF8N50NZF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDPF8N50NZF Specifications

Type	Description
Series:	UniFET-II™
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	500 V
Current - Continuous Drain (Id) @ 25°C:	7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1Ohm @ 3.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	735 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	40W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole

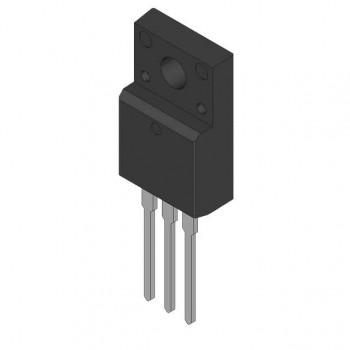

Supplier Device Package:	TO-220F
Package / Case:	TO-220-3 Full Pack

Please confirm the specifications of the products when ordering.
