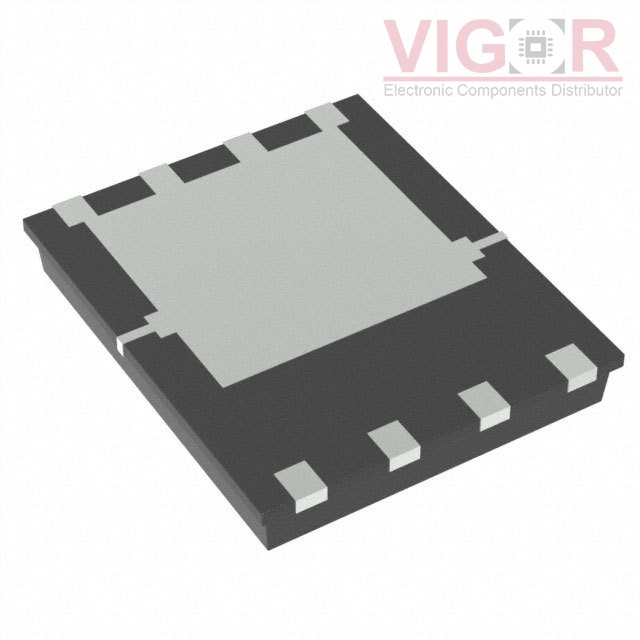

RJK1575DPA-00#J5A

Part No :: RJK1575DPA-00#J5A

Manufacturer: Renesas Electronics America

Description: MOSFET N-CH 150V 25A WPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RJK1575DPA-00#J5A PDF

Availability: 0 pieces

Current price of RJK1575DPA-00#J5A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RJK1575DPA-00#J5A Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	150 V
Current - Continuous Drain (Id) @ 25°C:	25A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	48mOhm @ 12.5A, 10V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	37 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	2200 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	65W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	WPAK(3F) (5x6)
Package / Case:	8-PowerVDFN
