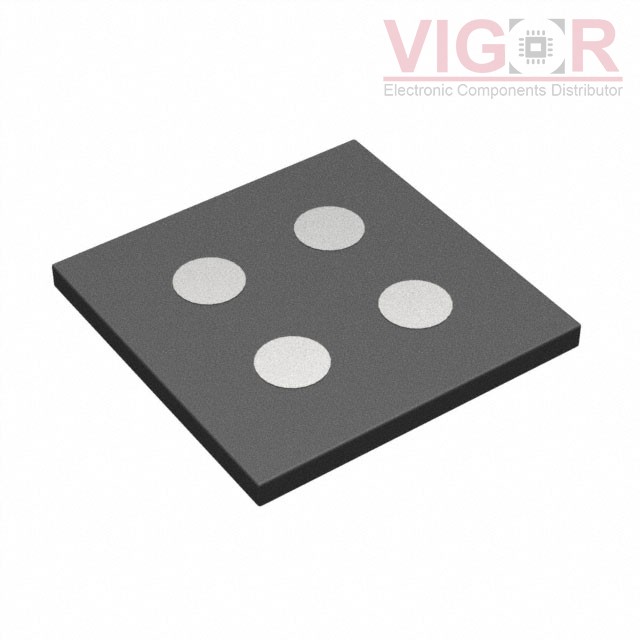

FJ4B01110L1

Part No :: FJ4B01110L1

Manufacturer: Panasonic

Description: MOSFET P-CH 12V 1.4A ALGA004

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FJ4B01110L1 PDF

Availability: 1845 pieces

Current price of FJ4B01110L1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FJ4B01110L1 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	1.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	153mOhm @ 700mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 598µA
Gate Charge (Qg) (Max) @ Vgs:	3.3 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	226 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	340mW (Ta)
Operating Temperature:	-40°C ~ 85°C (TA)
Mounting Type:	Surface Mount
Supplier Device Package:	ALGA004-W-0606-RA01
Package / Case:	4-XFLGA, CSP
