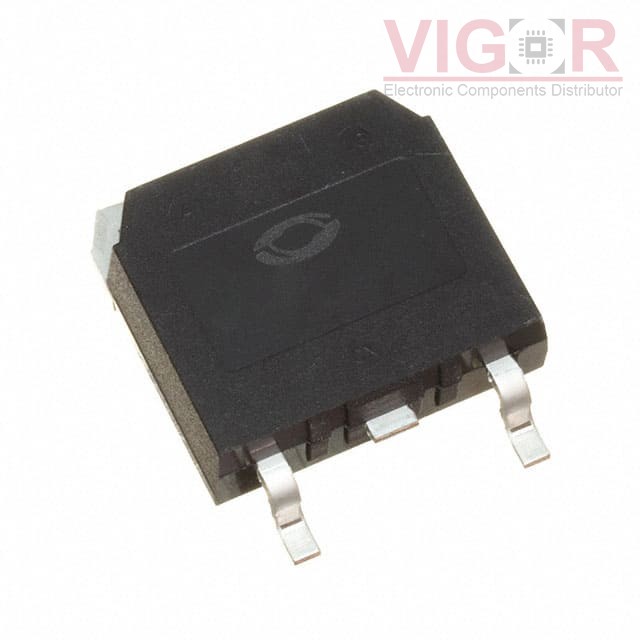

MSC080SMA120S

Part No :: MSC080SMA120S

Manufacturer: Roving Networks / Microchip Technology

Description: SICFET N-CH 1200V 35A D3PAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: MSC080SMA120S PDF

Availability: 29 pieces

Current price of MSC080SMA120S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MSC080SMA120S Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	35A
Drive Voltage (Max Rds On, Min Rds On):	20V
Rds On (Max) @ Id, Vgs:	100mOhm @ 15A, 20V
Vgs(th) (Max) @ Id:	2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	64 nC @ 20 V
Vgs (Max):	+23V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	838 pF @ 1000 V
FET Feature:	-
Power Dissipation (Max):	182W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D3PAK
Package / Case:	TO-268-3, D³Pak (2 Leads + Tab), TO-268AA
