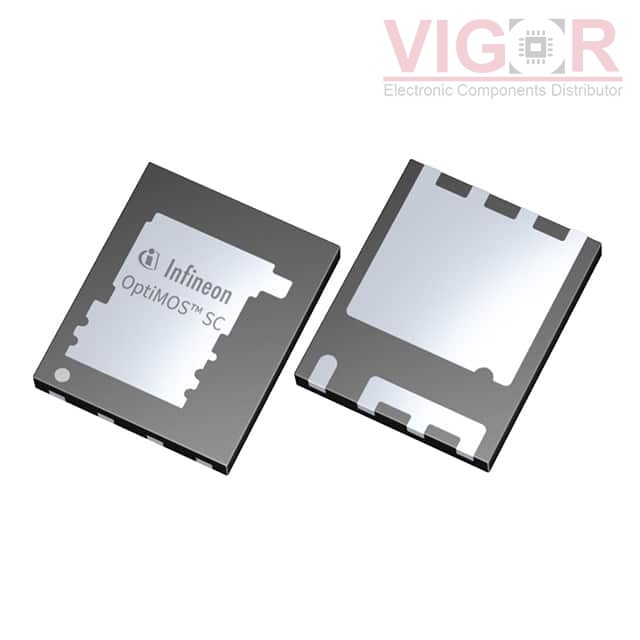

BSC070N10NS5SCATMA1

Part No :: BSC070N10NS5SCATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 100V 14A/82A 8SWSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: BSC070N10NS5SCATMA1 PDF

Availability: 981 pieces

Current price of BSC070N10NS5SCATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSC070N10NS5SCATMA1 Specifications

Type	Description
Series:	OptiMOS™ 5
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	14A (Ta), 82A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	7mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	3.8V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:	38 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2700 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta), 100W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-WSON-8-2
Package / Case:	8-PowerWDFN

Please confirm the specifications of the products when ordering.
