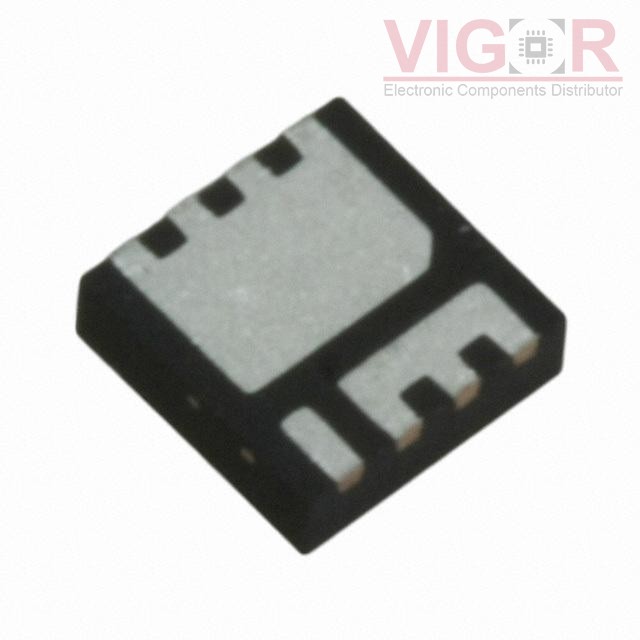

IRFH5053TRPBF

Part No :: IRFH5053TRPBF

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 100V 9.3A/46A PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRFH5053TRPBF PDF

Availability: 443 pieces

Current price of IRFH5053TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRFH5053TRPBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	9.3A (Ta), 46A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	18mOhm @ 9.3A, 10V
Vgs(th) (Max) @ Id:	4.9V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:	36 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1510 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	3.1W (Ta), 8.3W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PQFN (5x6) Single Die
Package / Case:	8-PowerVDFN

Please confirm the specifications of the products when ordering.
