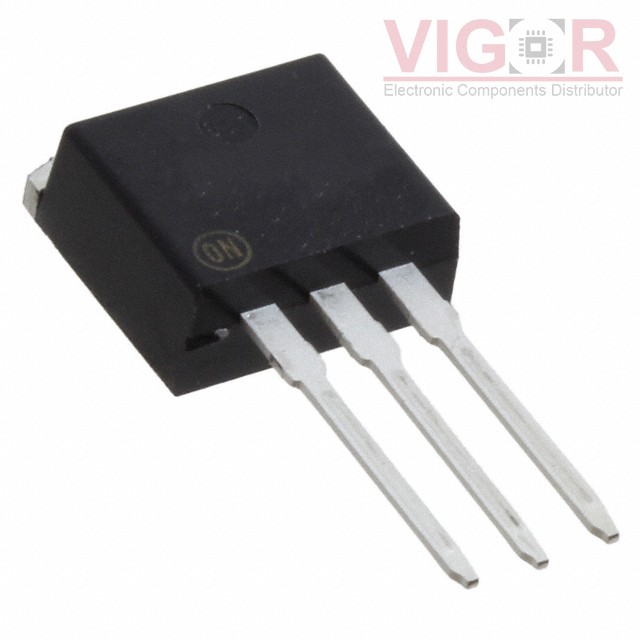

2SJ661-1E

Part No :: 2SJ661-1E

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET P-CH 60V 38A TO262-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: 2SJ661-1E PDF

Availability: 14650 pieces

Current price of 2SJ661-1E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

2SJ661-1E Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	38A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4V, 10V
Rds On (Max) @ Id, Vgs:	39mOhm @ 19A, 10V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	80 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	4360 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	1.65W (Ta), 65W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-262-3
Package / Case:	TO-262-3 Long Leads, I²Pak, TO-262AA
