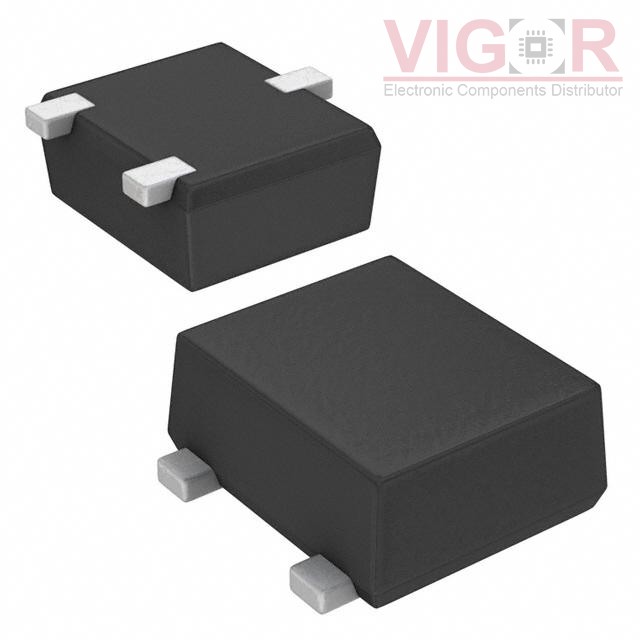

RAF040P01TCL

Part No :: RAF040P01TCL

Manufacturer: ROHM Semiconductor

Description: MOSFET P-CH 12V 4A TUMT3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RAF040P01TCL PDF

Availability: 1791 pieces

Current price of RAF040P01TCL is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RAF040P01TCL Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	30mOhm @ 4A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	37 nC @ 4.5 V
Vgs (Max):	-8V
Input Capacitance (Ciss) (Max) @ Vds:	4000 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	800mW (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TUMT3
Package / Case:	3-SMD, Flat Lead
