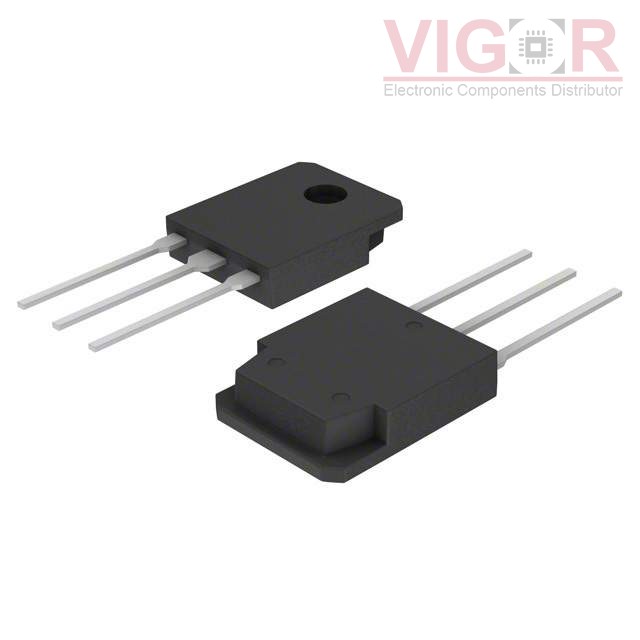

IXTH22N50P

Part No :: IXTH22N50P

Manufacturer: Wickmann / Littelfuse

VIGOR # :: 2910279

Description: MOSFET N-CH 500V 22A TO247

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IXTH22N50P PDF

Country of origin: -

Date code: -

IXTH22N50P Specifications

Type	Description
Series:	PolarHV™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	500 V
Current - Continuous Drain (Id) @ 25°C:	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	270mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:	5.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	50 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	2630 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	350W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247 (IXTH)
Package / Case:	TO-247-3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 300

Shipped from

HK warehouse

Expected Shipping Date

Apr 01 - Apr 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.2300~~	~~$5.23~~
30	~~$4.2066~~	~~$126.20~~
120	~~$3.8325~~	~~$459.90~~
510	~~$3.1034~~	~~$1 582.72~~
1020	~~$2.6173~~	~~$2 669.65~~

Current price of IXTH22N50P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
