NVBG080N120SC1

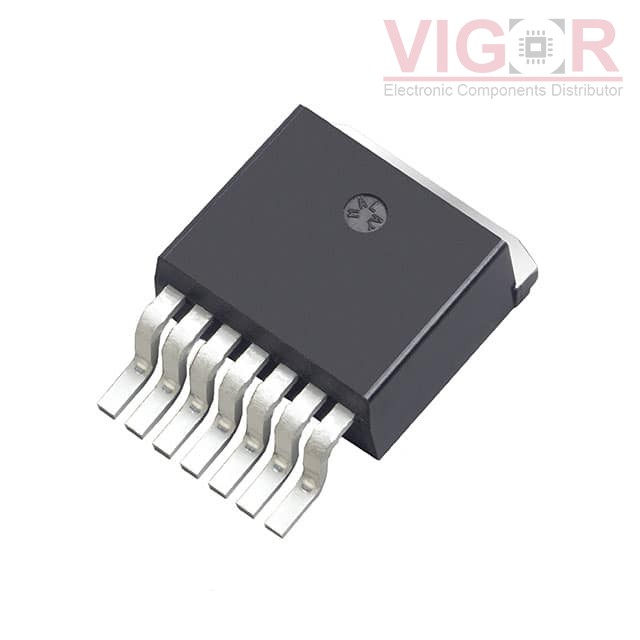

Image is for reference,
please contact us to get the real picture

Part No :: NVBG080N120SC1

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: TRANS SJT N-CH 1200V 30A D2PAK-7

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NVBG080N120SC1 PDF

Availability: 800 pieces

Unit Price: ~~$11.78000~~

Current price of NVBG080N120SC1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NVBG080N120SC1 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	20V
Rds On (Max) @ Id, Vgs:	110mOhm @ 20A, 20V
Vgs(th) (Max) @ Id:	4.3V @ 5mA
Gate Charge (Qg) (Max) @ Vgs:	56 nC @ 20 V
Vgs (Max):	+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds:	1154 pF @ 800 V
FET Feature:	-
Power Dissipation (Max):	179W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	D2PAK-7
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
