STO47N60M6

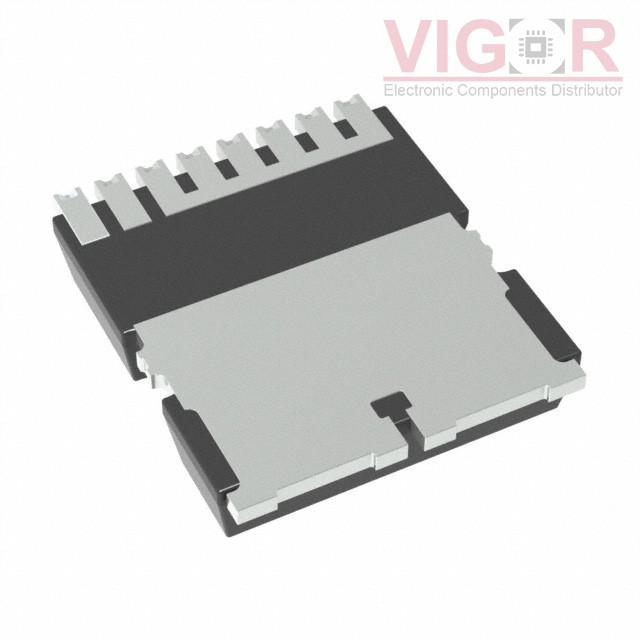

Image is for reference,
please contact us to get the real picture

Part No :: STO47N60M6

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 600V 36A TOLL

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STO47N60M6 PDF

Availability: 1880 pieces

Unit Price: ~~$6.41000~~

Current price of STO47N60M6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STO47N60M6 Specifications

Type	Description
Series:	MDmesh™ M6
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	36A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	80mOhm @ 18A, 10V
Vgs(th) (Max) @ Id:	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	52.2 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	2340 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	255W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TOLL (HV)
Package / Case:	8-PowerSFN

Please confirm the specifications of the products when ordering.
