FDMS86350

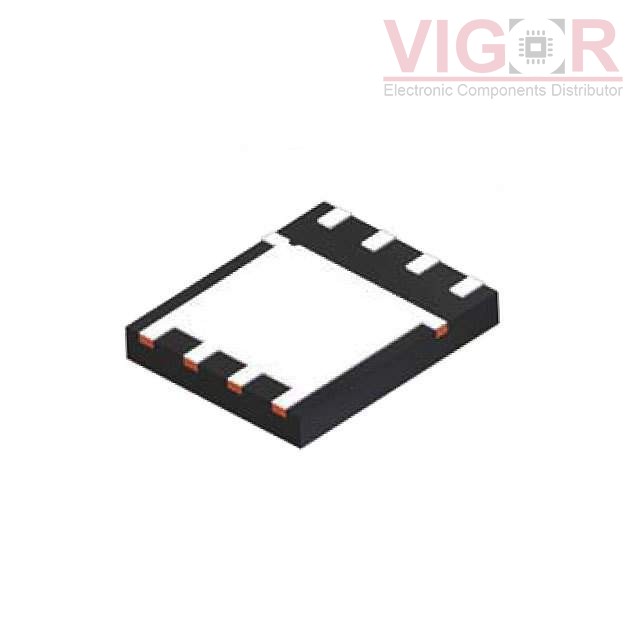

Image is for reference,
please contact us to get the real picture

Part No :: FDMS86350

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 80V 25A/130A POWER56

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMS86350 PDF

Availability: 21731 pieces

Unit Price: ~~$3.72000~~

Current price of FDMS86350 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMS86350 Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	25A (Ta), 130A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	8V, 10V
Rds On (Max) @ Id, Vgs:	2.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	155 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	10680 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	2.7W (Ta), 156W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Power56
Package / Case:	8-PowerTDFN

Please confirm the specifications of the products when ordering.
