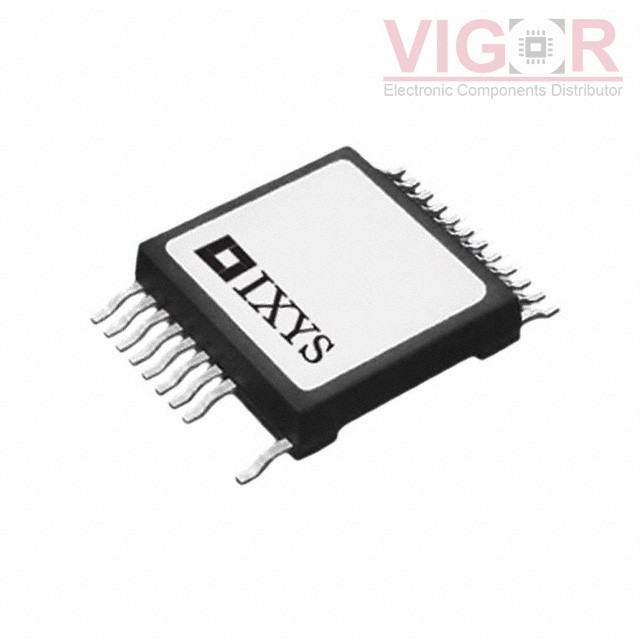

MMIX1F520N075T2

Part No :: MMIX1F520N075T2

Manufacturer: Wickmann / Littelfuse

Description: MOSFET N-CH 75V 500A 24SMPD

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: MMIX1F520N075T2 PDF

Availability: 0 pieces

Current price of MMIX1F520N075T2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MMIX1F520N075T2 Specifications

Type	Description
Series:	GigaMOS™, TrenchT2™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	75 V
Current - Continuous Drain (Id) @ 25°C:	500A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	1.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id:	5V @ 8mA
Gate Charge (Qg) (Max) @ Vgs:	545 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	41000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	830W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	24-SMPD
Package / Case:	24-PowerSMD, 21 Leads
