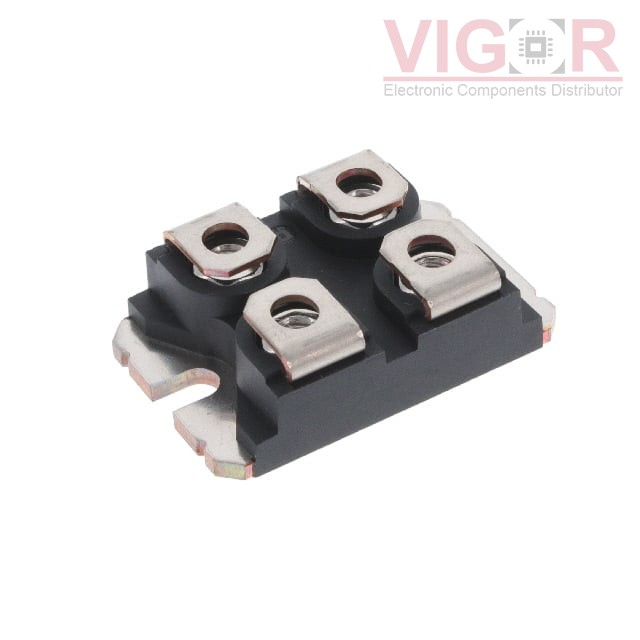

MSC70SM120JCU2

Part No :: MSC70SM120JCU2

Manufacturer: Roving Networks / Microchip Technology

Description: TRANS SJT N-CH 1.2KV 89A SOT227

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: MSC70SM120JCU2 PDF

Availability: 39 pieces

Current price of MSC70SM120JCU2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

MSC70SM120JCU2 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss):	1.2 kV
Current - Continuous Drain (Id) @ 25°C:	89A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	20V
Rds On (Max) @ Id, Vgs:	31mOhm @ 40A, 20V
Vgs(th) (Max) @ Id:	2.8V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	232 nC @ 20 V
Vgs (Max):	+25V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	3020 pF/m @ 1000 V
FET Feature:	-
Power Dissipation (Max):	395W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Supplier Device Package:	SOT-227 (ISOTOP®)
Package / Case:	SOT-227-4, miniBLOC
