CSD17559Q5

Part No :: CSD17559Q5

Manufacturer: VIGOR

VIGOR # :: 2911749

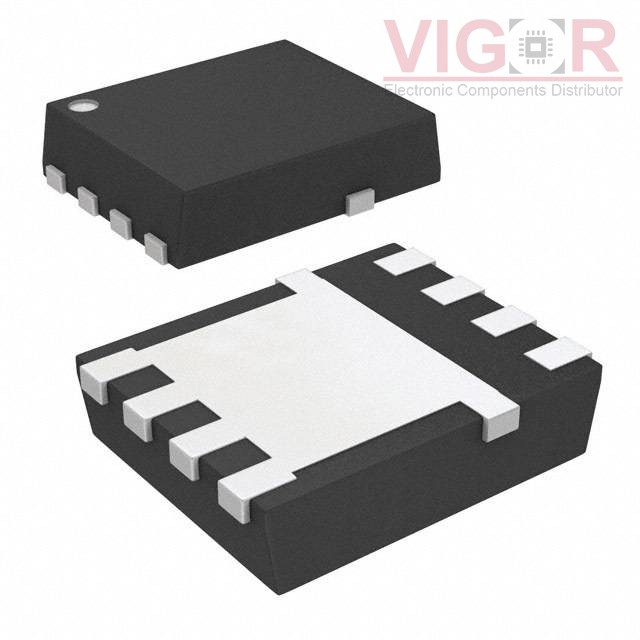

Description: CSD17559Q5 30V, N CHANNEL NEXFET

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD17559Q5 PDF

Country of origin: -

Date code: -

CSD17559Q5 Specifications

Type	Description
Series:	NexFET™
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	40A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	1.15mOhm @ 40A, 10V
Vgs(th) (Max) @ Id:	1.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	51 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	9200 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	3.2W (Ta), 96W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-VSON-CLIP (5x6)
Package / Case:	8-PowerTDFN
