NTNS3190NZT5G

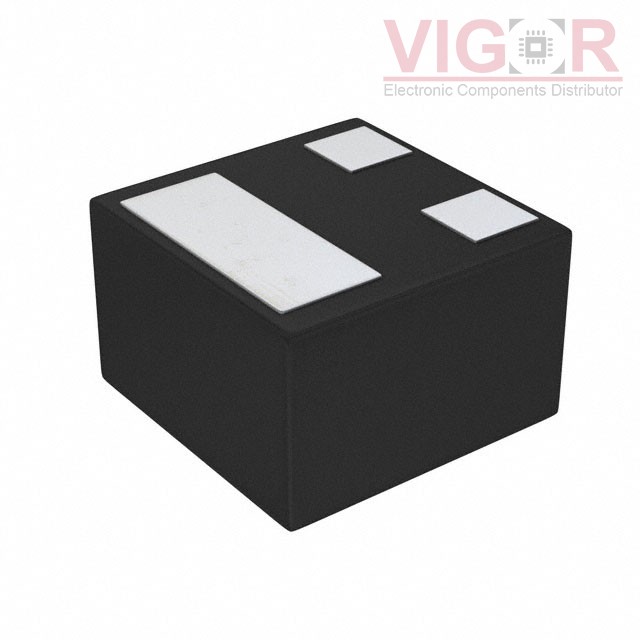

Image is for reference,
please contact us to get the real picture

Part No :: NTNS3190NZT5G

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 20V 224MA 3XLLGA

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NTNS3190NZT5G PDF

Availability: 89864000 pieces

Unit Price: ~~$0.67000~~

Current price of NTNS3190NZT5G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTNS3190NZT5G Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	224mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	1.4Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	0.7 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	15.8 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	120mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	3-XLLGA (0.62x0.62)
Package / Case:	3-XFDFN
