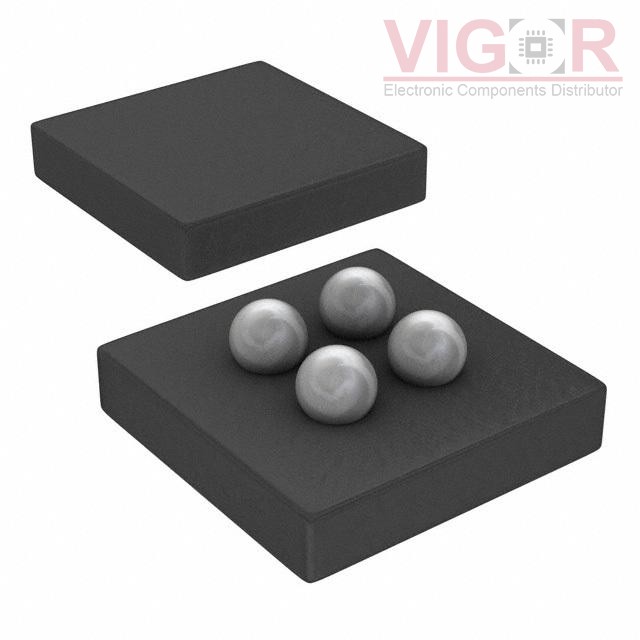

CSD23202W10

Part No :: CSD23202W10

Manufacturer: Texas Instruments

VIGOR # :: 2912324

Description: MOSFET P-CH 12V 2.2A 4DSBGA

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD23202W10 PDF

Country of origin: -

Date code: -

CSD23202W10 Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	12 V
Current - Continuous Drain (Id) @ 25°C:	2.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	53mOhm @ 500mA, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	3.8 nC @ 4.5 V
Vgs (Max):	-6V
Input Capacitance (Ciss) (Max) @ Vds:	512 pF @ 6 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	4-DSBGA (1x1)
Package / Case:	4-UFBGA, DSBGA
