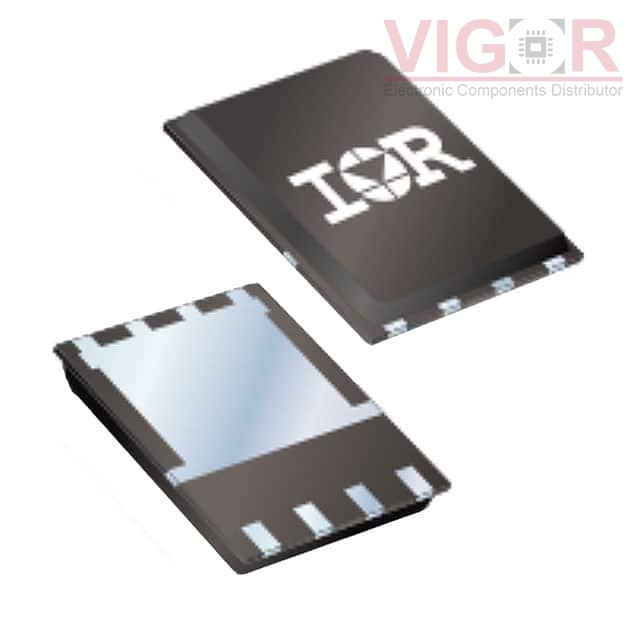

ISC019N03L5SATMA1

Part No :: ISC019N03L5SATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 30V 28A/100A TDSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: ISC019N03L5SATMA1 PDF

Availability: 9808 pieces

Current price of ISC019N03L5SATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

ISC019N03L5SATMA1 Specifications

Type	Description
Series:	OptiMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	28A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	1.9mOhm @ 30A, 10V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	44 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2800 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta), 69W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSON-8-5
Package / Case:	8-PowerTDFN
