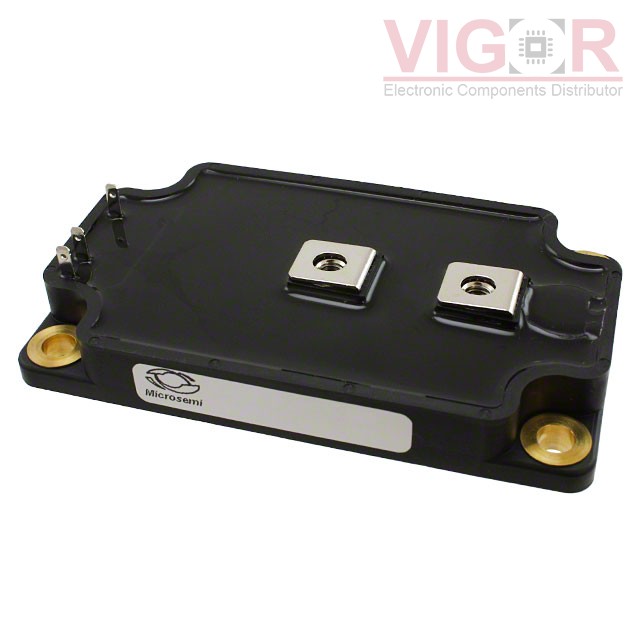

APTM100UM45DAG

Part No :: APTM100UM45DAG

Manufacturer: Roving Networks / Microchip Technology

Description: MOSFET N-CH 1000V 215A SP6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: APTM100UM45DAG PDF

Availability: 85 pieces

Current price of APTM100UM45DAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

APTM100UM45DAG Specifications

Type	Description
Series:	POWER MOS 7®
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	1000 V
Current - Continuous Drain (Id) @ 25°C:	215A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	52mOhm @ 107.5A, 10V
Vgs(th) (Max) @ Id:	5V @ 30mA
Gate Charge (Qg) (Max) @ Vgs:	1602 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	42700 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	5000W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Chassis Mount
Supplier Device Package:	SP6
Package / Case:	SP6
