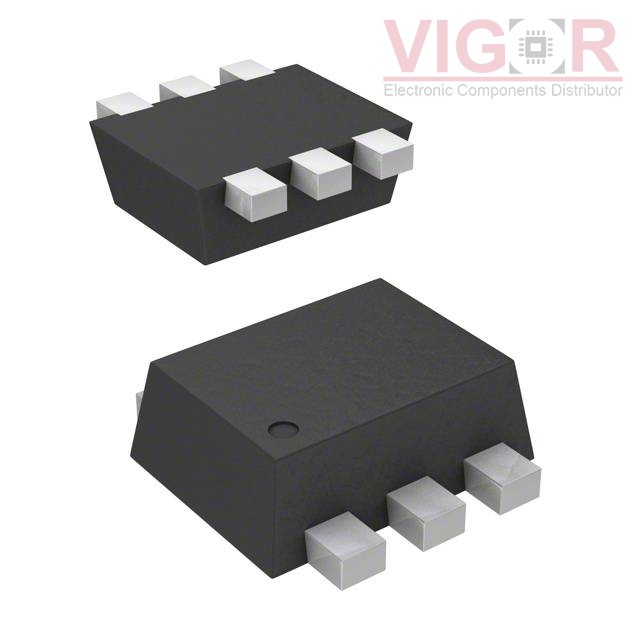

CMLDM8120G TR PBFREE

Part No :: CMLDM8120G TR PBFREE

Manufacturer: Central Semiconductor

Description: MOSFET P-CH 20V 860MA SOT563

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CMLDM8120G TR PBFREE PDF

Availability: 2147483647 pieces

Current price of CMLDM8120G TR PBFREE is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CMLDM8120G TR PBFREE Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	860mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	150mOhm @ 950mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	3.56 nC @ 4.5 V
Vgs (Max):	8V
Input Capacitance (Ciss) (Max) @ Vds:	200 pF @ 16 V
FET Feature:	-
Power Dissipation (Max):	350mW (Ta)
Operating Temperature:	-65°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-563
Package / Case:	SOT-563, SOT-666

Please confirm the specifications of the products when ordering.
