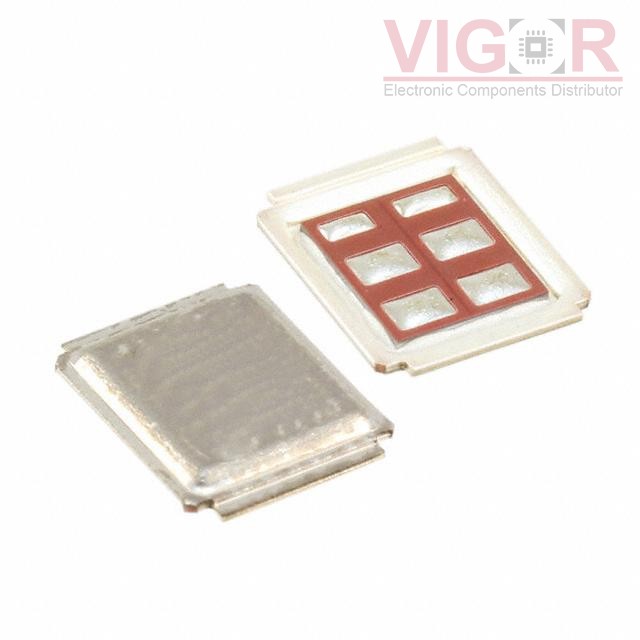

IRF7580MTRPBF

Part No :: IRF7580MTRPBF

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 60V 114A DIRECTFET

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRF7580MTRPBF PDF

Availability: 4160 pieces

Current price of IRF7580MTRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRF7580MTRPBF Specifications

Type	Description
Series:	StrongIRFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	114A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	3.6mOhm @ 70A, 10V
Vgs(th) (Max) @ Id:	3.7V @ 150µA
Gate Charge (Qg) (Max) @ Vgs:	180 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	6510 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	115W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DirectFET™ Isometric ME
Package / Case:	DirectFET™ Isometric ME
