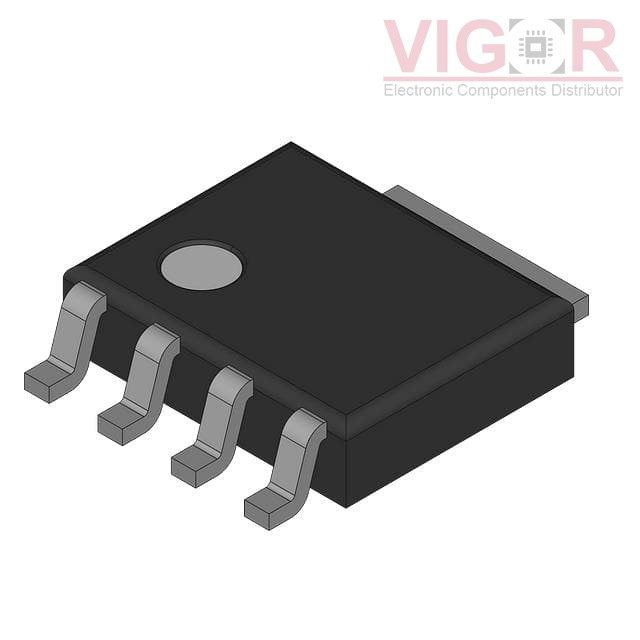

PSMN1R7-25YLC,115

Part No :: PSMN1R7-25YLC,115

Manufacturer: VIGOR

Description: MOSFET N-CH 25V 100A LFPAK56

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: PSMN1R7-25YLC,115 PDF

Availability: 3133 pieces

Unit Price: ~~$0.38000~~

Current price of PSMN1R7-25YLC,115 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

PSMN1R7-25YLC,115 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	25 V
Current - Continuous Drain (Id) @ 25°C:	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	1.9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	1.95V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	59 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3.735 pF @ 12 V
FET Feature:	-
Power Dissipation (Max):	164W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	LFPAK56, Power-SO8
Package / Case:	SC-100, SOT-669

Please confirm the specifications of the products when ordering.
