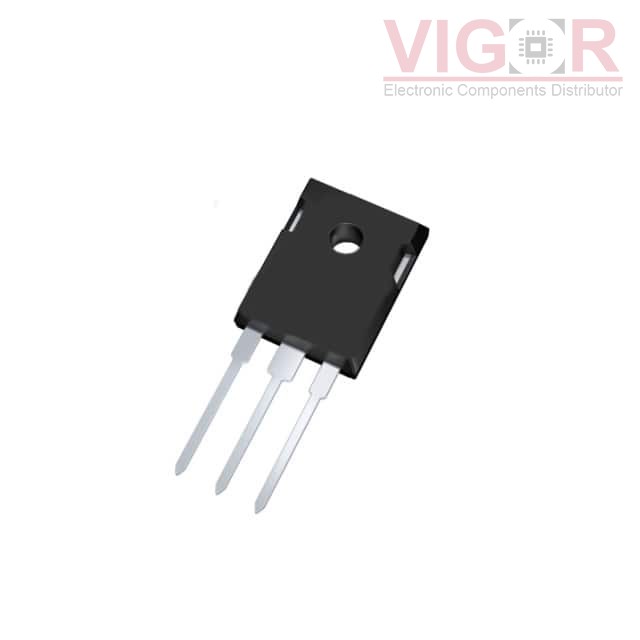

IPW90R340C3XKSA1

Part No :: IPW90R340C3XKSA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 900V 15A TO247-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPW90R340C3XKSA1 PDF

Availability: 0 pieces

Unit Price: ~~$4.25521~~

Current price of IPW90R340C3XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPW90R340C3XKSA1 Specifications

Type	Description
Series:	CoolMOS™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	900 V
Current - Continuous Drain (Id) @ 25°C:	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	340mOhm @ 9.2A, 10V
Vgs(th) (Max) @ Id:	3.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	94 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2400 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	208W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO247-3
Package / Case:	TO-247-3

Please confirm the specifications of the products when ordering.
