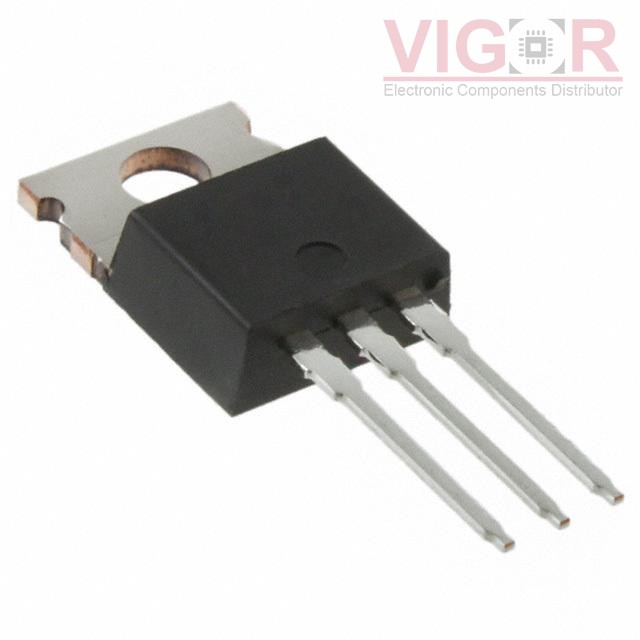

IRF9520PBF

Part No :: IRF9520PBF

Manufacturer: Vishay / Siliconix

VIGOR # :: 2913555

Description: MOSFET P-CH 100V 6.8A TO220AB

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRF9520PBF PDF

Country of origin: -

Date code: -

IRF9520PBF Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	6.8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	600mOhm @ 4.1A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	390 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	60W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3
