BSB012N03LX3 G

BSB012N03LX3 G

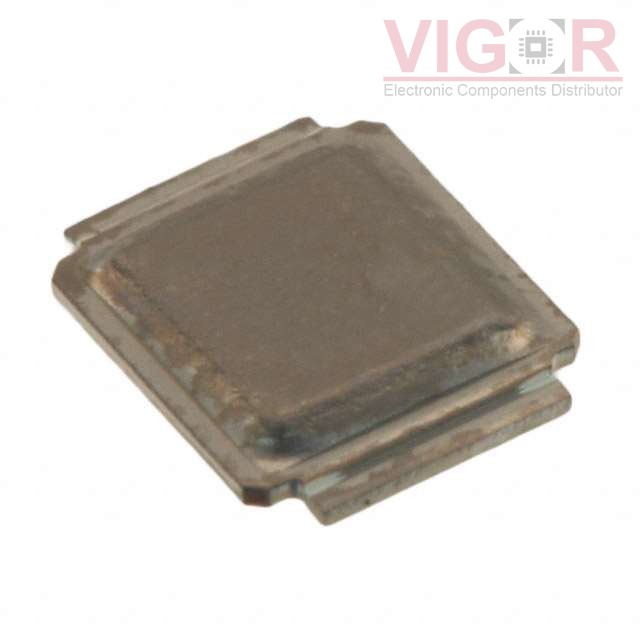

Image is for reference,
please contact us to get the real picture

Part No :

BSB012N03LX3 G

Manufacturer
IR (Infineon Technologies)
Description
MOSFET N-CH 30V 39A/180A 2WDSON
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Oct 17 - Oct 21 2025
DataSheet
BSB012N03LX3 G PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of BSB012N03LX3 G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BSB012N03LX3 G Specifications
Type Description
Series:OptiMOS™
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:39A (Ta), 180A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.2mOhm @ 30A, 10V
Vgs(th) (Max) @ Id:2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:169 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:16900 pF @ 15 V
FET Feature:-
Power Dissipation (Max):2.8W (Ta), 89W (Tc)
Operating Temperature:-40°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:MG-WDSON-2, CanPAK M™
Package / Case:3-WDSON
