DMP3017SFK-7

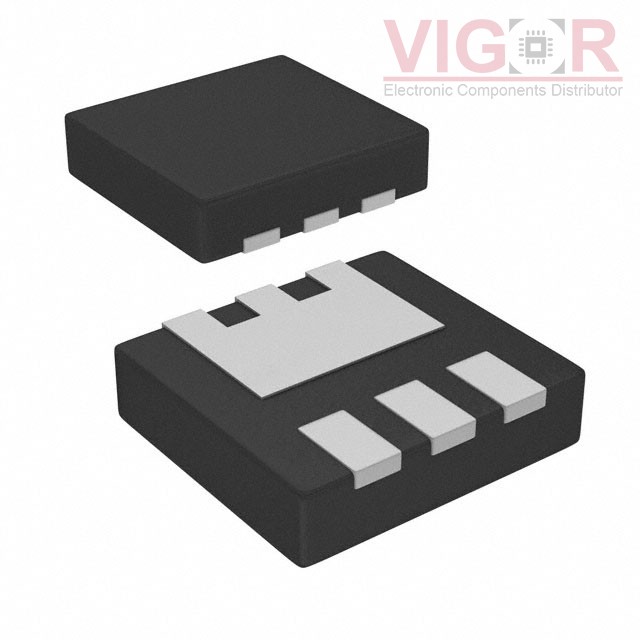

Image is for reference,
please contact us to get the real picture

Part No :: DMP3017SFK-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET P-CH 30V 10.4A 6UDFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMP3017SFK-7 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of DMP3017SFK-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMP3017SFK-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	10.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	14mOhm @ 9.5A, 10V
Vgs(th) (Max) @ Id:	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	90 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	4414 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	U-DFN2523-6
Package / Case:	6-PowerUDFN

Please confirm the specifications of the products when ordering.
