IRF7821TRPBF-1

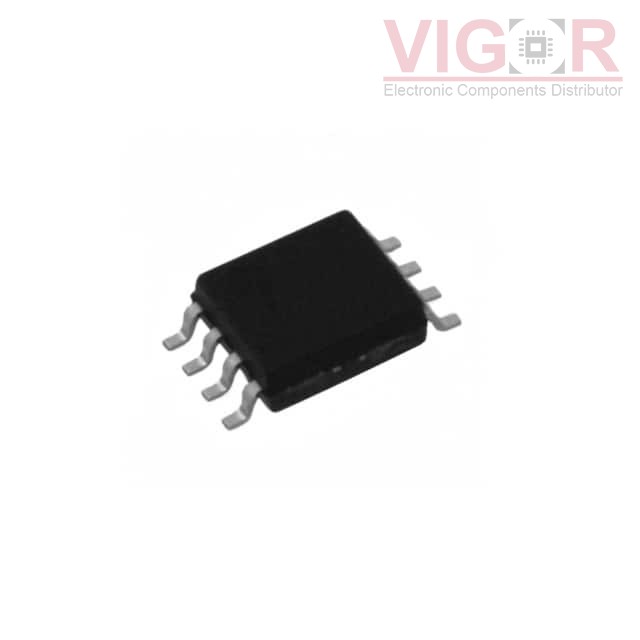

Image is for reference,
please contact us to get the real picture

Part No :: IRF7821TRPBF-1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 30V 13.6A 8SO

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRF7821TRPBF-1 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of IRF7821TRPBF-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRF7821TRPBF-1 Specifications

Type	Description
Series:	HEXFET®
Package:	Tape & Reel (TR)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	13.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	9.1mOhm @ 13A, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	14 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1010 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta)
Operating Temperature:	-55°C ~ 155°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SO
Package / Case:	8-SOIC (0.154", 3.90mm Width)

Please confirm the specifications of the products when ordering.
