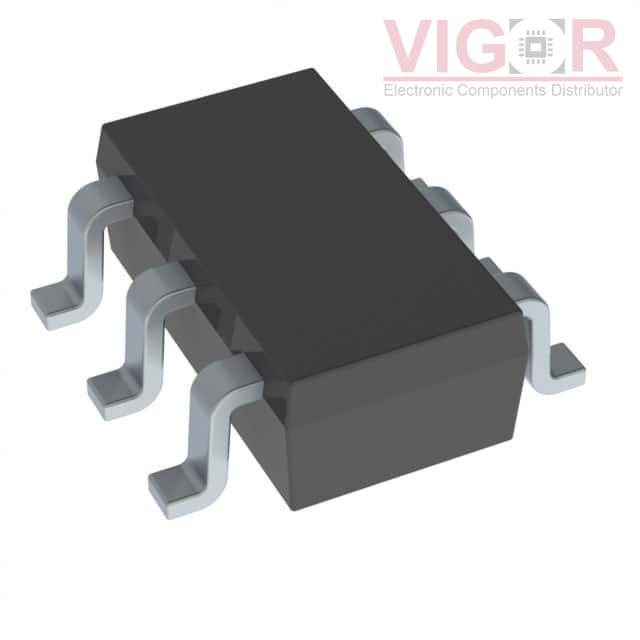

SI3805DV-T1-GE3

Part No :: SI3805DV-T1-GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET P-CH 20V 3.3A 6TSOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SI3805DV-T1-GE3 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of SI3805DV-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SI3805DV-T1-GE3 Specifications

Type	Description
Series:	LITTLE FOOT®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	3.3A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 10V
Rds On (Max) @ Id, Vgs:	84mOhm @ 3A, 10V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 10 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	330 pF @ 10 V
FET Feature:	Schottky Diode (Isolated)
Power Dissipation (Max):	1.1W (Ta), 1.4W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-TSOP
Package / Case:	SOT-23-6 Thin, TSOT-23-6
