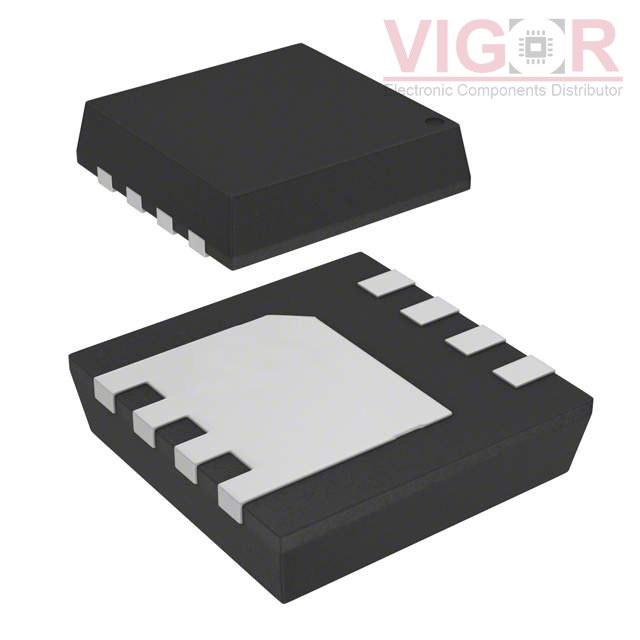

AON7760

Part No :: AON7760

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N-CH 25V 33A/75A 8DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AON7760 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AON7760 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AON7760 Specifications

Type	Description
Series:	AlphaMOS
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	25 V
Current - Continuous Drain (Id) @ 25°C:	33A (Ta), 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	2mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	76 nC @ 10 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	5520 pF @ 12.5 V
FET Feature:	-
Power Dissipation (Max):	4.1W (Ta), 34.5W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFN-EP (3.3x3.3)
Package / Case:	8-PowerWDFN
