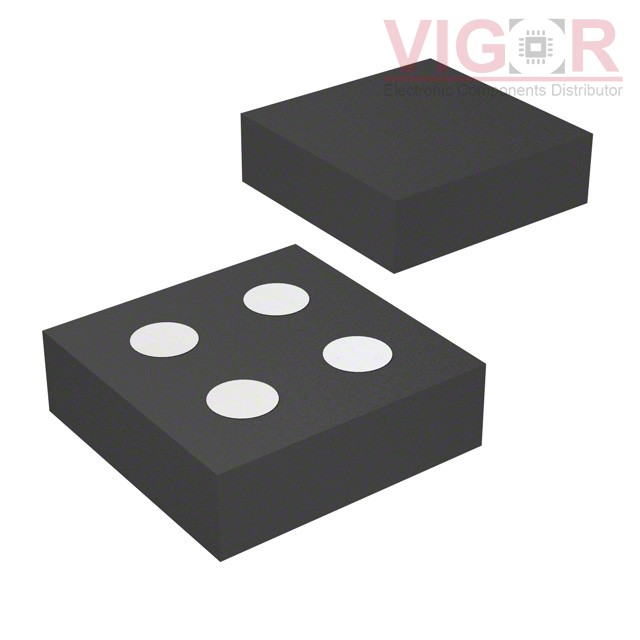

AOC2403

Part No :: AOC2403

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET P-CH 20V 1.8A 4ALPHADFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AOC2403 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of AOC2403 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AOC2403 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	95mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	4.8 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	405 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	450mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	4-AlphaDFN (0.97x0.97)
Package / Case:	4-SMD, No Lead

Please confirm the specifications of the products when ordering.
