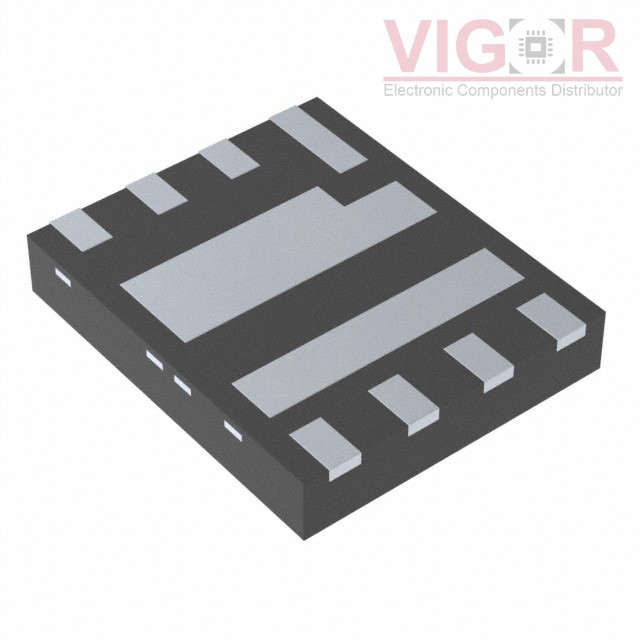

AO6085N03

Part No :: AO6085N03

Manufacturer: Alpha and Omega Semiconductor, Inc.

VIGOR # :: 4579635

Description: MOSFET N-CH 30V 11A/50A 8DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AO6085N03 PDF

Country of origin: -

Date code: -

AO6085N03 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	11A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	8.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	24 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1380 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	1.9W (Ta), 31W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFN (5x6)
Package / Case:	8-VDFN Exposed Pad
