| Type | Description |
|---|---|
| Series: | PowerTrench®, SyncFET™ |
| Package: | Bulk |
| Part Status: | Obsolete |
| FET Type: | N-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 30 V |
| Current - Continuous Drain (Id) @ 25°C: | 16.9A (Ta), 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 5.7mOhm @ 16.9A, 10V |
| Vgs(th) (Max) @ Id: | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 57 nC @ 10 V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 3890 pF @ 15 V |
| FET Feature: | - |
| Power Dissipation (Max): | 2.3W (Ta), 33W (Tc) |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |

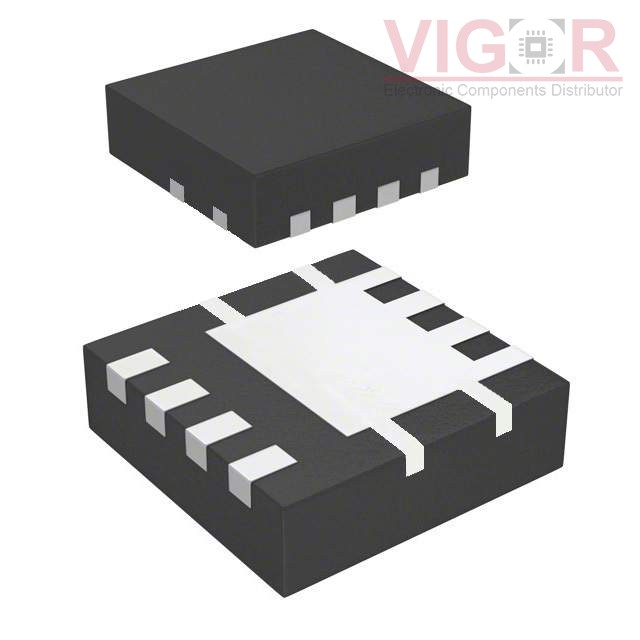

| Supplier Device Package: | 8-MLP (3.3x3.3) |
| Package / Case: | 8-PowerWDFN |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of FDMC7672_F125 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
