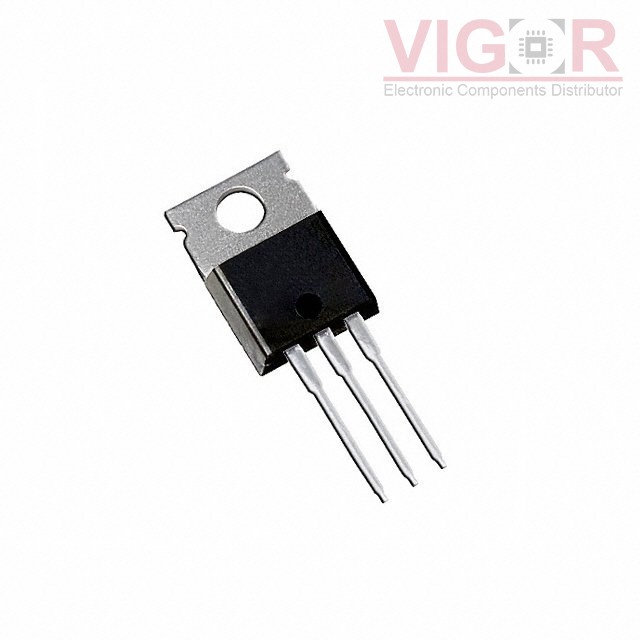

IRF3706PBF

Part No :: IRF3706PBF

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4580976

Description: MOSFET N-CH 20V 77A TO220AB

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRF3706PBF PDF

Country of origin: -

Date code: -

IRF3706PBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	77A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.8V, 10V
Rds On (Max) @ Id, Vgs:	8.5mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	35 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	2410 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	88W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-220AB
Package / Case:	TO-220-3
