| Type | Description |
|---|---|
| Series: | OptiMOS™ |
| Package: | Tape & Reel (TR) |
| Part Status: | Active |
| FET Type: | P-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 60 V |
| Current - Continuous Drain (Id) @ 25°C: | 1.9A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 250mOhm @ 1.9A, 10V |
| Vgs(th) (Max) @ Id: | 2V @ 270µA |
| Gate Charge (Qg) (Max) @ Vgs: | 13.9 nC @ 10 V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 420 pF @ 30 V |
| FET Feature: | - |
| Power Dissipation (Max): | 1.8W (Ta), 5W (Tc) |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |

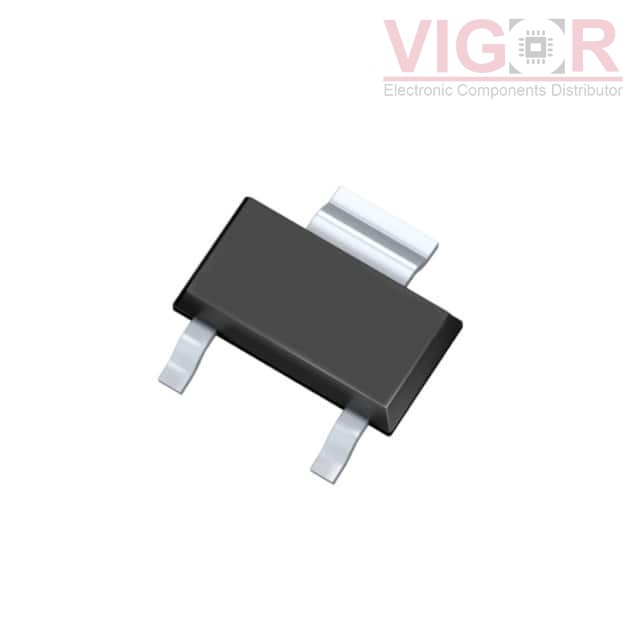

| Supplier Device Package: | PG-SOT223 |
| Package / Case: | TO-261-3 |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of ISP25DP06LMSATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
