| Type | Description |
|---|---|
| Series: | - |
| Package: | Tape & Reel (TR) |
| Part Status: | Obsolete |
| FET Type: | P-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 20 V |
| Current - Continuous Drain (Id) @ 25°C: | 3.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 32mOhm @ 1.5A, 10V |
| Vgs(th) (Max) @ Id: | 1.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 40 nC @ 10 V |
| Vgs (Max): | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds: | 1355 pF @ 10 V |
| FET Feature: | - |
| Power Dissipation (Max): | 550mW (Ta) |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |

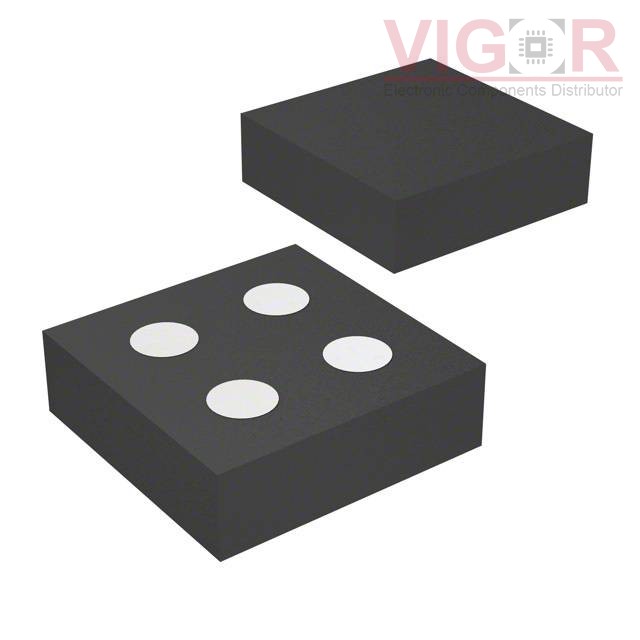

| Supplier Device Package: | 4-AlphaDFN (1.57x1.57) |
| Package / Case: | 4-SMD, No Lead |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of AOC2417 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
