CSD25301W1015

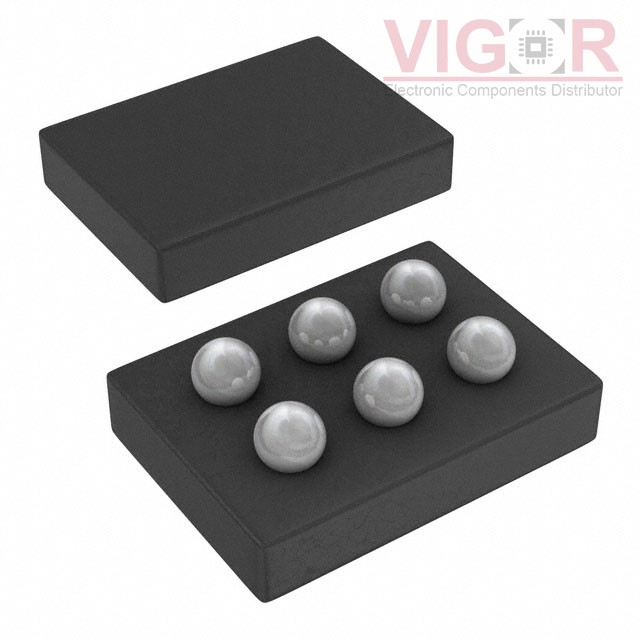

Part No :: CSD25301W1015

Manufacturer: Texas Instruments

VIGOR # :: 4581814

Description: MOSFET P-CH 20V 2.2A 6DSBGA

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD25301W1015 PDF

Country of origin: -

Date code: -

CSD25301W1015 Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	2.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	75mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	2.5 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	270 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.5W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-DSBGA (1x1.5)
Package / Case:	6-UFBGA, DSBGA
