| Type | Description |
|---|---|
| Series: | - |
| Package: | Tape & Reel (TR)Cut Tape (CT) |
| Part Status: | Obsolete |
| FET Type: | N-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 40 V |
| Current - Continuous Drain (Id) @ 25°C: | 22A (Ta), 32A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs: | 4.8mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id: | 2.4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 35 nC @ 10 V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 2200 pF @ 20 V |
| FET Feature: | - |
| Power Dissipation (Max): | 4.2W (Ta), 35.7W (Tc) |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | 8-DFN (5x6) |
| Package / Case: | 8-PowerSMD, Flat Leads |
| Quantity | Unit Price | Ext. Price |
|---|
Current price of AON6442 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
MOSFET N-CH 40V 29A 5DFN
MOSFET P-CH 30V 8.8A 8SOIC
MOSFET N-CH 60V 32A TO220AB

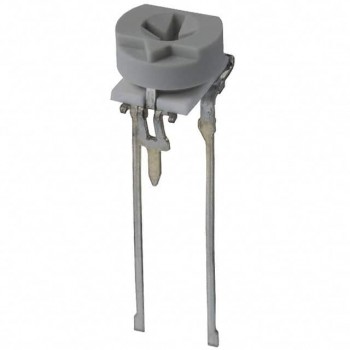

TRIMMER 10K OHM 0.3W PC PIN TOP
