IRL520L

IRL520L

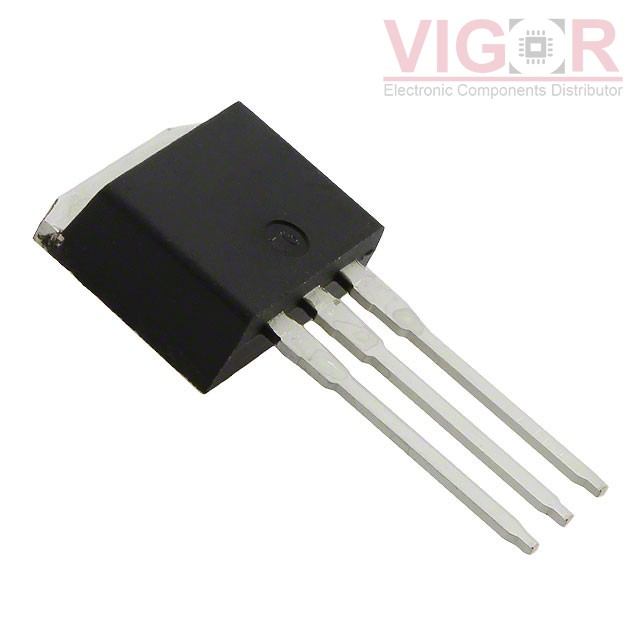

Image is for reference,
please contact us to get the real picture

Part No :

IRL520L

Manufacturer
Vishay / Siliconix
Description
MOSFET N-CH 100V 9.2A TO262-3
Catalog
Transistors - FETs, MOSFETs - Single
Shipped from
HK warehouse
Expected Shipping Date
Oct 21 - Oct 25 2025
DataSheet
IRL520L PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IRL520L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IRL520L Specifications
Type Description
Series:-
Package:Tube
Part Status:Obsolete
FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:9.2A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4V, 5V
Rds On (Max) @ Id, Vgs:270mOhm @ 5.5A, 5V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:12 nC @ 5 V
Vgs (Max):±10V
Input Capacitance (Ciss) (Max) @ Vds:490 pF @ 25 V
FET Feature:-
Power Dissipation (Max):60W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-262-3
Package / Case:TO-262-3 Long Leads, I²Pak, TO-262AA
