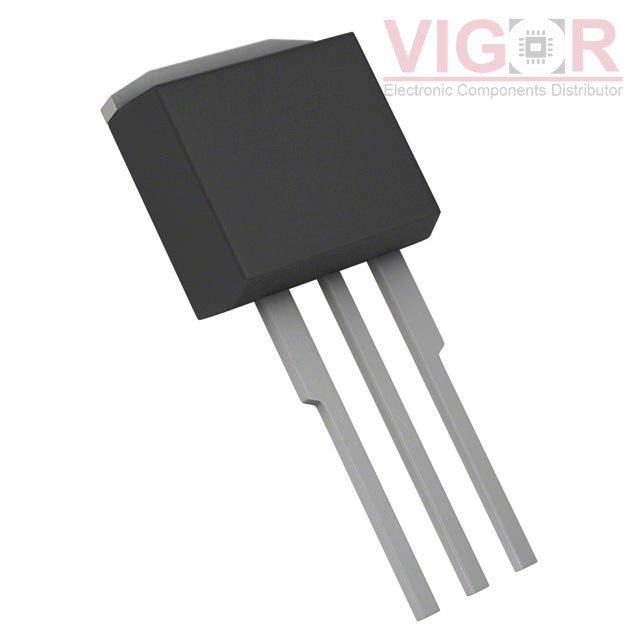

IRL3803LPBF

Part No :: IRL3803LPBF

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4583064

Description: MOSFET N-CH 30V 140A TO262

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRL3803LPBF PDF

Country of origin: -

Date code: -

IRL3803LPBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	140A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	6mOhm @ 71A, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	140 nC @ 4.5 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	5000 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3.8W (Ta), 200W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-262
Package / Case:	TO-262-3 Long Leads, I²Pak, TO-262AA
