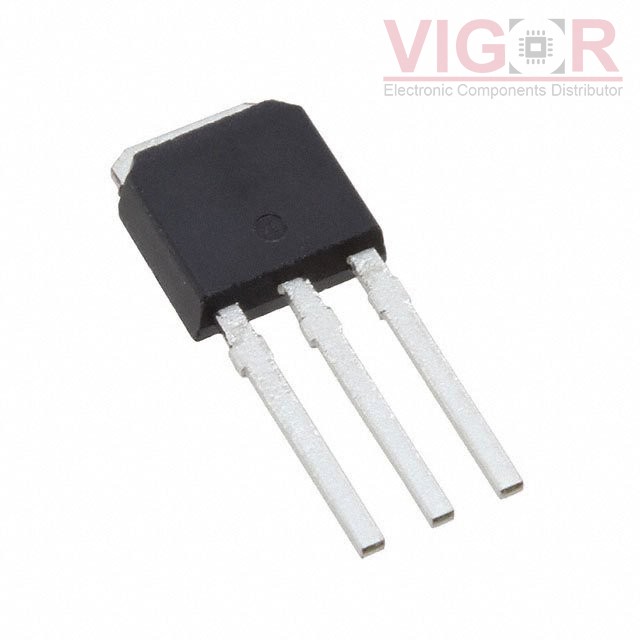

IRLU2703

Part No :: IRLU2703

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 4587216

Description: MOSFET N-CH 30V 23A I-PAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRLU2703 PDF

Country of origin: -

Date code: -

IRLU2703 Specifications

Type	Description
Series:	HEXFET®
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	23A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	45mOhm @ 14A, 10V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	15 nC @ 4.5 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	450 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	45W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	I-PAK
Package / Case:	TO-251-3 Short Leads, IPak, TO-251AA
